210N
N-Type TOPCon solar cell
N-Type TOPCon solar cell with 210 × 210 mm dimensions and 18 busbars. Phosphorus-doped monocrystalline silicon with a SiNx coating on both sides, for photovoltaic module manufacturing.

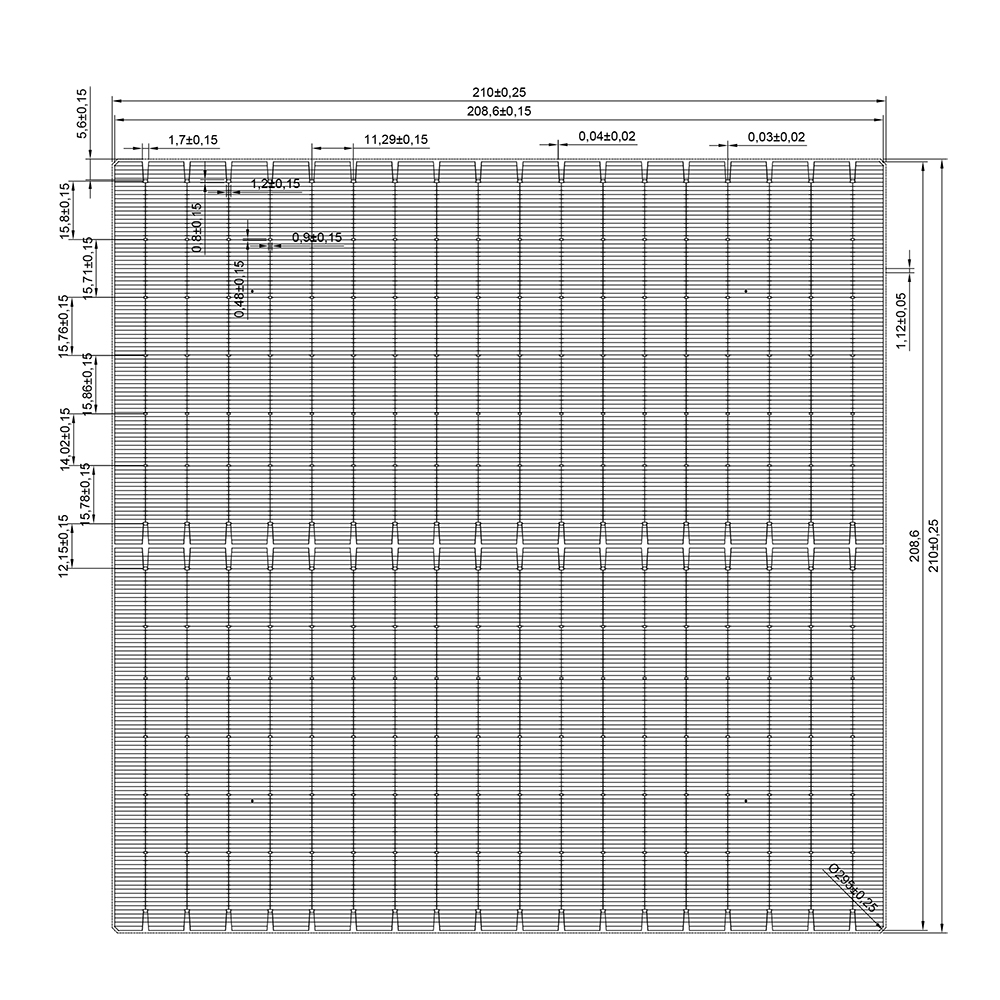

Front side · Technical drawing210 × 210 ± 0.25 mm
Efficiency range24.1–25.5%
Maximum power range10.63–11.24 W
Busbars18
Thickness130 µm ± 10%
01 / 210N
Physical characteristics
- Substrate material
- Phosphorus-doped N-type monocrystalline silicon
- Dimensions
- 210 × 210 ± 0.25 mm
- Wafer diameter (Φ)
- 295 ± 0.25 mm
- Thickness
- 130 µm ± 10%
- Front side
- 18 BB · 188 ± 10% fingers
- Rear side
- 18 BB · 192 ± 10% fingers
- Antireflection coating
- Blue silicon nitride (SiNx), front and rear
03 / STC
Electrical performance
Download electrical data (CSV)Standard test conditions: 1000 W/m² · AM 1.5 · 25 °C.
Swipe horizontally to see all parameters.
| Efficiency (%) | Isc (A) | Voc (V) | Impp (A) | Vmpp (V) | Pmpp (W) | FF (%) |
|---|---|---|---|---|---|---|
| 25.5 | 18.024 | 0.730 | 17.353 | 0.648 | 11.24 | 85.46 |
| 25.4 | 18.005 | 0.728 | 17.338 | 0.646 | 11.20 | 85.45 |
| 25.3 | 17.980 | 0.727 | 17.297 | 0.645 | 11.16 | 85.35 |
| 25.2 | 17.952 | 0.726 | 17.255 | 0.644 | 11.11 | 85.26 |
| 25.1 | 17.908 | 0.725 | 17.213 | 0.643 | 11.07 | 83.25 |
| 25.0 | 17.632 | 0.724 | 17.171 | 0.642 | 11.02 | 85.18 |
| 24.9 | 17.586 | 0.723 | 17.129 | 0.641 | 10.98 | 85.18 |
| 24.8 | 17.527 | 0.722 | 17.087 | 0.640 | 10.94 | 85.24 |
| 24.7 | 17.498 | 0.721 | 17.045 | 0.639 | 10.89 | 85.15 |
| 24.6 | 17.431 | 0.720 | 17.003 | 0.638 | 10.85 | 85.25 |
| 24.5 | 17.390 | 0.719 | 16.960 | 0.637 | 10.80 | 85.22 |
| 24.4 | 17.361 | 0.718 | 16.917 | 0.636 | 10.76 | 85.13 |
| 24.3 | 17.334 | 0.717 | 16.875 | 0.635 | 10.72 | 85.03 |
| 24.2 | 17.291 | 0.716 | 16.832 | 0.634 | 10.67 | 85.01 |
| 24.1 | 17.255 | 0.715 | 16.789 | 0.633 | 10.63 | 84.95 |
Values are reproduced from the supplied specification. Some electrical entries require reconciliation; confirm the selected efficiency bin and its complete parameters in the order specification.
04 / 210N
Temperature coefficients
- Power
- −(0.30 ± 0.02) %/K
- Voltage
- −(0.26 ± 0.03) %/K
- Current
- +(0.046 ± 0.015) %/K

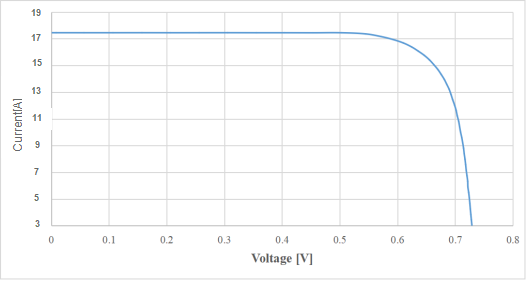

I–V characteristic
